Model: AP/W Holiday Detector High Voltage

Download Instructions

Model: AP/W Holiday Detector High Voltage

Applications

Check coatings on:
- Pipelines
  - Internal
  - External
- Tanks
- Concrete
- Sewers
- Manholes

Calibration

Recommended Annually

Recommendations:

Specified and Approved on specs around the world Conforms to NACE International RP0188, RP0274, RP0490

Environment

10ºC to 50ºC (14ºF to 122ºF)

Dimensions

Shipping / Carrying Case: 41” x 18” x 8”, 35lbs (1040mm x 457mm x 203mm, 15.87kg) Instrument: 6.75” x 8.5” x 3.5”, 8 lbs (171.5mm x 216mm x 89mm, 3.62kg)

Model: AP/W Holiday Detector High Voltage

Electrodes

Parts & Accessories Available:

#085-146 AP/W Instrument
#123-001 Powerpak
#005-115s Compax Connector
#177-052 Wand Extension Handle 18"
#177-051 Wand Handle w/Compax Connector
#142-001 Belt, Black
#031-022 Charger, 6v DC - 110v/230v AC (North American plug only)
#026-037S 20' Ground Cable-AP/W
#010-036 Battery, Rechargeable 6V, Li-Ion
#009-022 Adapter to use "Spy" Spring Electrodes with T&R APS
#029-241 Carrying Case with Custom Form Insert APW
#000-250 Ground Cable purchased by the foot

AP/W Holiday Detector High Voltage, Tinker Rasor

Model: AP/W Holiday Detector High Voltage

Download Brochure

The Model AP/W includes the integrated peak reading voltmeter, also used in the Model APS, to measure and display the output voltage being applied to the structure.

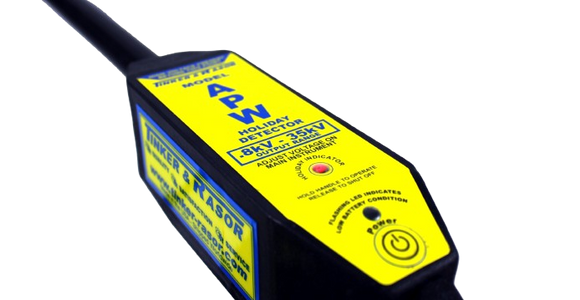

Other significant features include the unique T&R Safety Handle. The Safety Handle allows the user much more control over the instrument and does not allow the instrument to be left energized when unattended. This feature provides safety not only for the operator but also for all others sharing a job site.

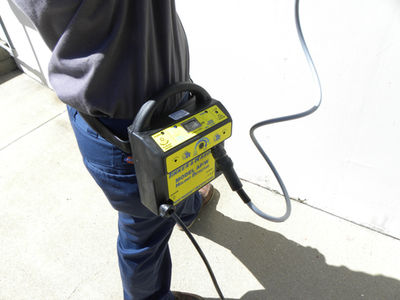

The Model AP/W main instrument is worn on a belt, keeping most of the weight on the operator and not contributing to arm fatigue when used on tanks, floors, walls, or other non-pipe structures.

Of the new features, one of the most important is the safety switch. This trigger system provides greater job-site safety for both the operator and nearby personnel and is very easy to use. Simply release the trigger, and the instrument instantly turns off.

The handle must be held down on the grip to operate the instrument, and the unit is shut down immediately when the handle is released.

This feature will increase job site safety as an instrument cannot be left energized while unattended.

After setting the voltage, the instrument remembers the setting and the range, so the instrument can be turned on and off as much as necessary without requiring further adjustments.

The instrument is controlled by an electronics package contained within the water impenetrable cover of the instrument. All control switches are push button operations, with large operational areas, easy to manipulate while wearing gloves. Controls include On, Low and High voltage ranges, LCD voltmeter display, the voltage setting switch, Loud and Louder volume controls and the wand handle release button.

Just below the LCD voltmeter display is the visual alert for holiday indications. This alert is made of a cluster of "super bright" LED's that are easily seen in bright daylight conditions.

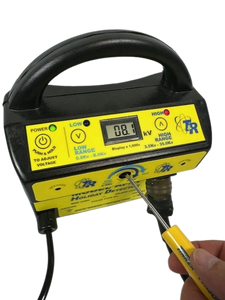

The voltage selection switch is located just above the LCD voltmeter display and is sealed from weather and dust by a screw cap. Using the supplied screwdriver, the dust cap is removed and voltages are set by turning the voltage selector as shown in the graphics. On the Low voltage range, select between 800 volts and 8,000 volts. On the High voltage range, select between 3,500 volts and 35,000 volts.

The LCD voltmeter display shows voltages in kilo-volts (kV). So, a voltage setting of 800 volts would be displayed as 0.8 and a voltage selection of 35,000 volts would be shown as 35.0.

*Electrode choice is made from the the Full Circle Spring Electrodes, 4" to 36" pipe diameters, or the Half Circle Spring Electrodes, 0.75" to 8" pipe diameters or Wire or Silicone-Rubber brush electrodes, 2" to 8" widths. You may choose one electrode per instrument, within the size ranges listed. Other sizes are available at a pro rated cost. Please call or e-mail for more information: +1 (909) 890-0700 or Info e-mail.

Old Style AP/W

This is the older style AP/W and it has been discontinued but Tinker & Rasor continues to support these units for our customers. For new orders, please see the "New" AP/W for ordering.

Download Manual

Parts List:

#010-001 Battery 9.6 volt
#031-005 Battery Charger
#168-004 Battery Tester
#026-001 Ground Cable
#177-051 Wand Handle
#177-052 Wand Extension
#026-036 Powerpak cable
#142-001 Belt, Black

Old AP/W Style Power Paks

#123-037A Powerpak 12,500 volts to 35,000 volts (12.5-35KV)
#123-036A Powerpak 6,000 volts to 16,000 volts (6-16KV)
#123-035A Powerpak 3,500 volts to 10,000 volts (3.5-10KV)
#123-034A Powerpak 900 volts to 3,400 volts (0.9-3.4KV)

Model: AP/W Holiday Detector High Voltage

800 volts to 35,000 volts in 1 instrument

US $4,195.00

Rent Now

Features

800 volts to 35,000 volts in one instrument
Safety cutoff switch
LCD output Meter
Audible & Visual detecting holiday indicators
MIL-SPEC, locking Power-Pak cable
Open, Ergonomic design, reduces user fatigue
Integrated belt loop system
Portable
6v Rechargeable Battery
THREE YEAR WARRANTY
Multiple electrodes available (See Electrodes page for details)

Construction

The Model AP/W comes complete in kit form, including:

Model AP/W instrument and battery
Power-Pak and 5' cable
20', 1/4 turn Locking Ground cable
Wand handle, 18", with full circle spring electrode connector
Wand extension handle, 18"
Battery charger, 110v or 240v
Belt (Adjustable for either waist of shoulder use)
Voltage adjusting screwdriver
Adapter to use "Spy" Spring Electrodes
MIL-SPEC, carrying case
One electrode* (Click here to choose your electrode)
Instructions Manual
Certificate of Calibration

Built for extreme environments
Rugged for field use
Power cutoff placed on Power-Pak
Longer Power-Pak cable
Form fitting design for wearing on hip or over the shoulder

The Latest in Holiday Detector Technology

Tinker & Rasor introduces the completely redesigned Model AP/W high voltage holiday detector. The Model AP/W has built upon the advancements of the Model APS and packaged them into a belt worn instrument to provide a holiday detector with the application flexibility to move from pipe, to tank, to concrete and beyond. This pulsating DC holiday detector with regulated voltage* has a range of 800 volts to 35,000 volts, giving complete coverage for coating specifications.
