Did you know?

The Model M/1 meets the requirements for AMPP RP0188, ASTM, and ISO standards.

Model: M/1 Low Voltage Holiday Detector

Applications

  • Use on thin film coatings on conductive substrates such as tanks, concrete, etc.

Recommendations:

  • Conforms to standards for low voltage holiday detectors, such as AMPP International RP0188

Calibration

  • Recommended Annually

Specifications

  • Outputs: 9v, 67.5v, 90v

  • Voltage Accuracy: ±5%

  • 80 ohm. Resistance for coating on metal

  • 90 ohm. Resistance for coating on concrete

  • (Factory setting is 80 ohm. See Instructions for information on changing setting to 90 ohm)

Dimensions

  • 5' x 4' x 2' Case. 1 lbs. (127mm x 101mm x 50.8mm, 45kg)-Instrument in case

  • 20" x 5.5" x 4", 3 lbs. (508mm x 139.7mm x 101.6mm, 1.35kg)-Shipping

Model: M/1 Low Voltage Holiday Detector

The M/1 is known Worldwide as the best choice for the inspection of thin film coatings (0 to 20 mils). The M-1 now uses a 9v battery which can be replaced without opening the instrument case. With on-board calibration verification, the M/1 can be checked in the field with no other test apparatus needed. An LED lights on the front panel when the unit is in calibration and when a holiday is detected. The M/1 comes complete ready go to work right out of the box. Headphones may be used in noisy environments that drown out the normal audio signal.

Model: M/1 Low Voltage Holiday Detector

Model: M/1 Low Voltage Holiday Detector

Stick Type Low Voltage, "Wet Sponge" Holiday Detector

New Updates Features

  • Outputs: 9v, 67.5v, 90v

  • Power LED

  • Audible & Visual holiday detecting indicators

  • 2 Resistance settings

    • 80Ω for coatings on metal substrates

    • 90Ω for coatings on concrete

  • On-board calibration verification

  • 3.5mm Headphone jack

  • Battery operated (9v)

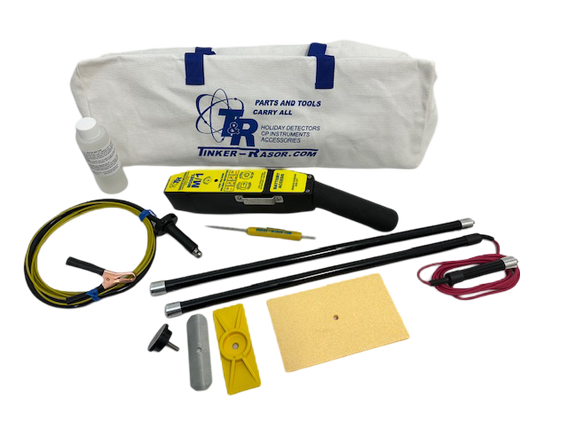

The Model M/1 kit includes:

  • M/1 Instrument

  • 25' Ground Cable

  • Water Wetter Wetting Solution, 4oz.

  • 18" Extension Wand

  • 16" w/Red Cable & New M/1 Cable Adapter

  • Electrode, Sponge, 6" x 3.5" x 2"

  • Yellow Sponge Holder

  • Sponge Holder Black Knob

  • Sponge Backing Plate

  • Battery, 9v (installed)

  • T&R Screw Driver

  • Canvas Carrying Bag

  • Instructions Manual

  • Certificate of Calibration

Ease of use makes the M/1 the Professionals’ choice.

Unpacking M/1 Low Voltage Holiday Detector

Model: M/1 Low Voltage Holiday Detector

M/1 Kit Replacement Accessories:

  • 026-101 25' Ground Cable

  • 049-014 Water Wetter Wetting Solution, 4oz.

  • 028-086 Canvas Carrying Bag

  • 177-070 18" Extension Wand

  • 177-075 16" Wand w/Red Cable & New M/1 Cable Adapter

  • 055-882 Electrode, Sponge, 6" x 3.5" x 2"

  • 076-050 Yellow Sponge Holder

  • 094-030 Sponge Holder Black Knob

  • 014-195 Sponge Backing Plate

  • 010-007 Battery, 9v

  • 073-069 T&R Screw Driver

​

Previous Version (Old Style Red/Black box) M/1 parts:

177-071 Wand with red cable

026-017 Ground Cable, 15', Black
